Hub Drains

Custom Solutions

Kusel’s Hub Drains provide efficient drainage solutions for equipment such as condensation piping or other discharged liquids. Made from high-quality stainless steel, these drains are ideal for food processing, dairy, pharmaceutical, and other sanitary applications requiring reliable wastewater management.

Key Features:

Premium Stainless Steel Construction: Crafted from 304 or 316L stainless steel for superior corrosion resistance and long-lasting performance.
Compact & Versatile Design: Perfect for connecting indirect waste lines in confined spaces while ensuring proper drainage.
Sanitary & Easy to Clean: Smooth, crevice-free surfaces help prevent bacterial buildup and simplify maintenance.
Customizable Options: Available in various inlet sizes, outlet configurations, and strainer options to suit specific applications.

Order Your Hub Drain →

Hub Drain

The 6” x 3” hub drain was created for use under a wall sink. Materials – SCH 10, 304 SS.

Metal exhaust tip with a tapered design, featuring a smooth silver finish and a polished cylindrical base.

A metallic funnel viewed from the open end, set against a dark background.

A cylindrical metal pipe with a smooth white top, set against a dark background.

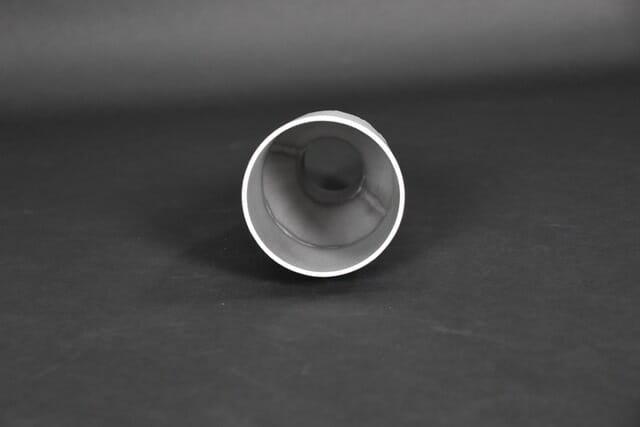

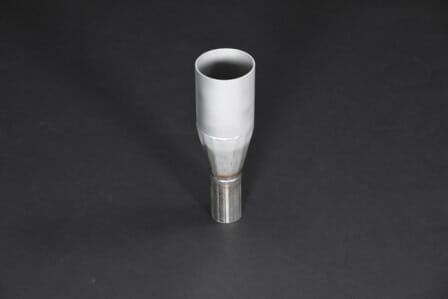

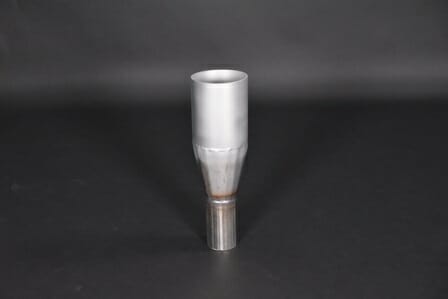

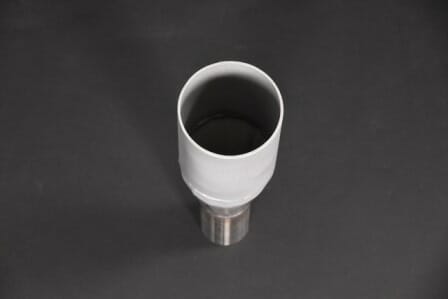

Hub Drain (4” X 2” SCH 40)

The hub drain was designed to handle indirect waste. Dimensions – 4” x 2” SCH 40, 304 SS, 12 ¾” Long.

Metallic funnel-shaped object attached to a long cylindrical tube, resting on a black surface.

A long, cylindrical metal tube with a flared end, resting on a dark surface.

Metal funnel with a wide opening at the top and a narrow, cylindrical body, set against a black background.

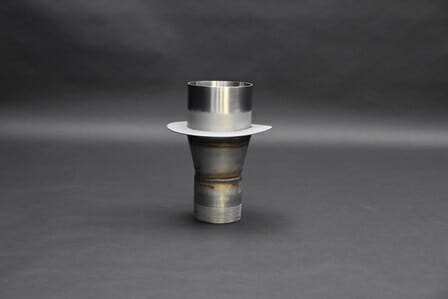

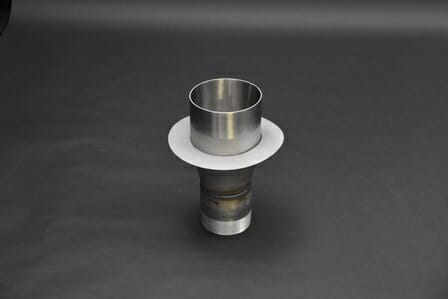

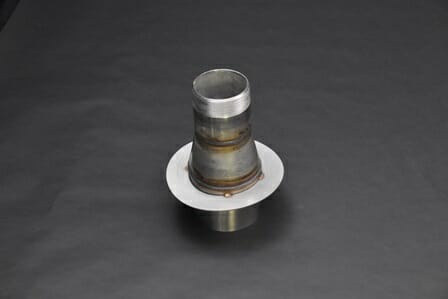

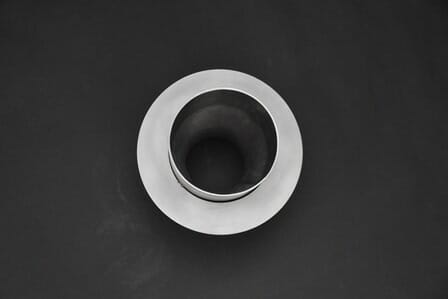

Hub Drain (6″ X 4″ External Thread Outlet)

6″ x 4″ External Thread Outlet, 12 3/4″ Long, Setting Ring, Polished

Metallic funnel-shaped object with a cylindrical top and a wider base, set against a dark background.

Metal funnel with a cylindrical top and a wider base, set against a dark background.

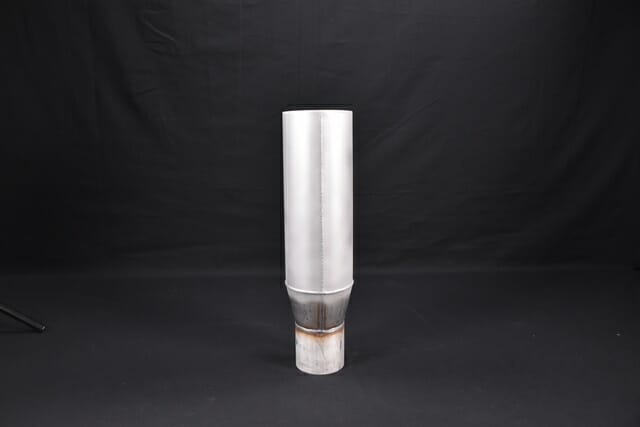

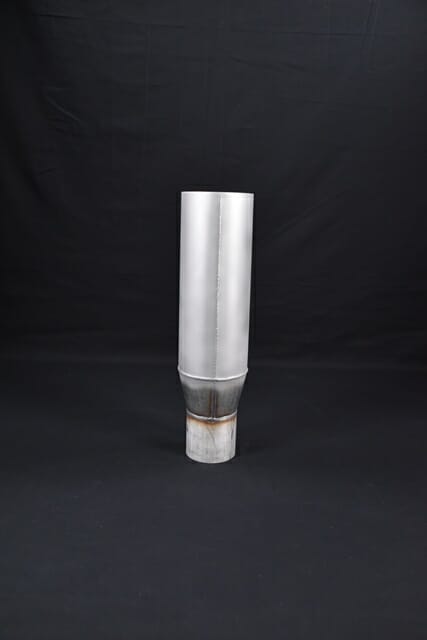

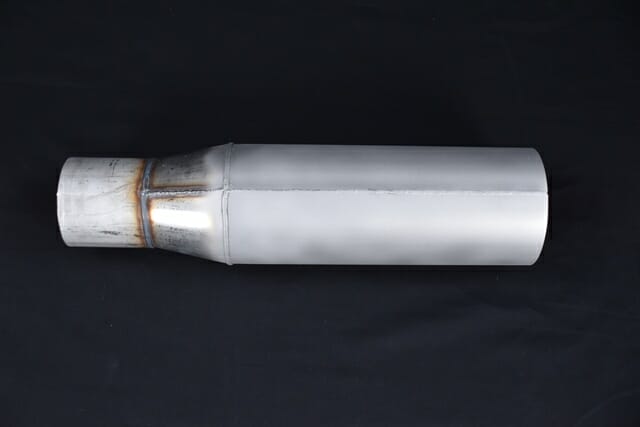

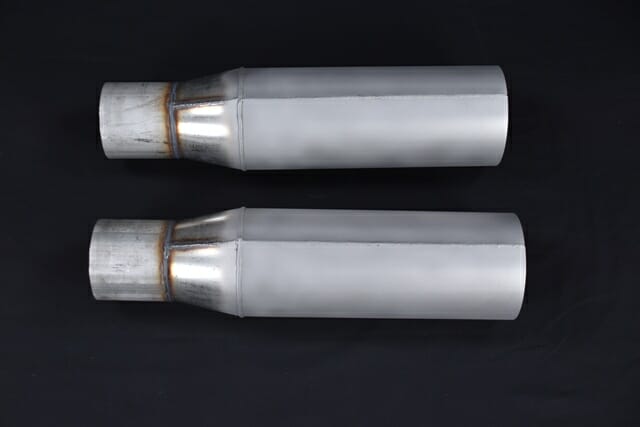

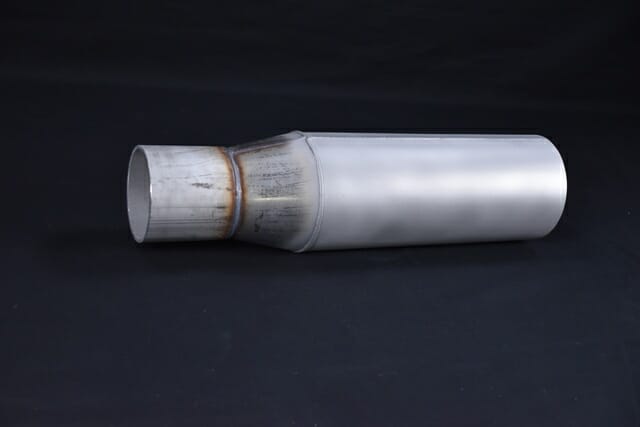

Hub Drain (6” X 4” SCH 40)

Dimensions – 6” x 4” SCH 40, 304 SS, 23” Long.

Two metallic exhaust tips, one with a welded seam, displayed against a black background.

Metal exhaust pipe with a tapered end and visible welding seams, resting on a black background.

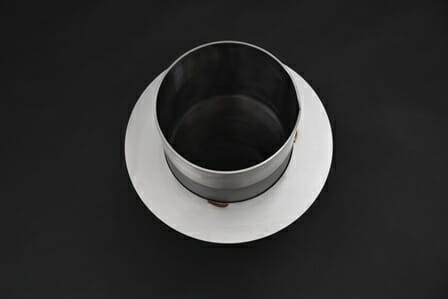

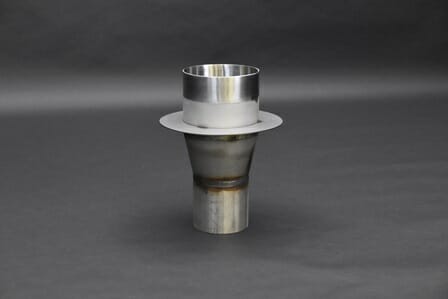

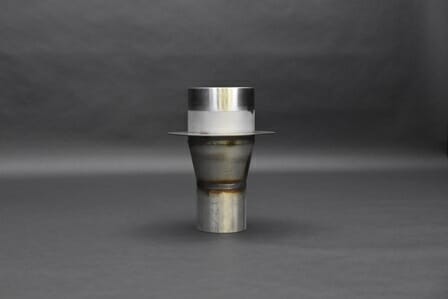

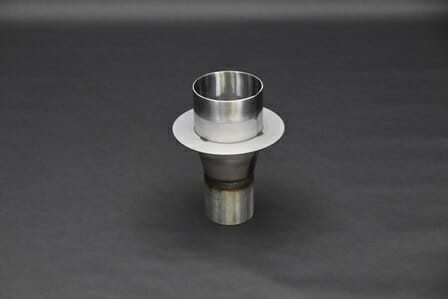

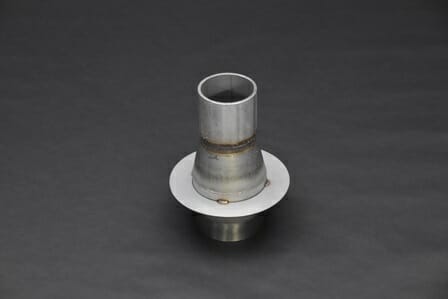

Hub Drain (6” X 4” SCH 40, Setting Ring, Polished)

6″ x 4″, Sch 40, 304, 12 3/4″ Long, Setting Ring, Polished

Metal funnel with a polished top, a wide base, and a welded seam, set against a dark background.

Metallic funnel-shaped object with a smooth top and a wider base, set against a dark gray background.

Metal fitting with a cylindrical top, a flared base, and a smooth finish, set against a dark background.

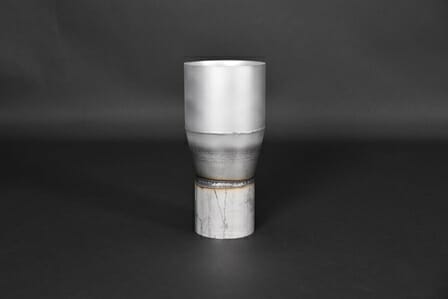

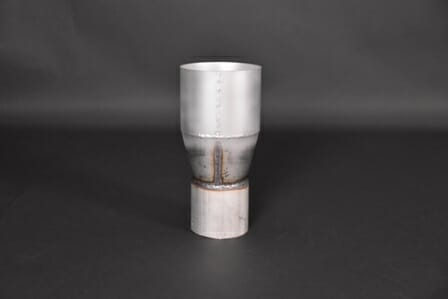

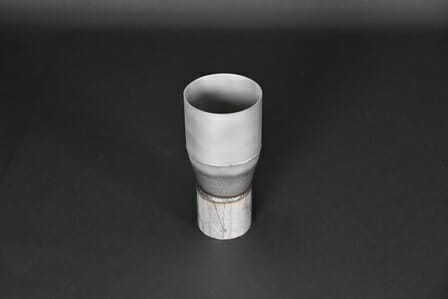

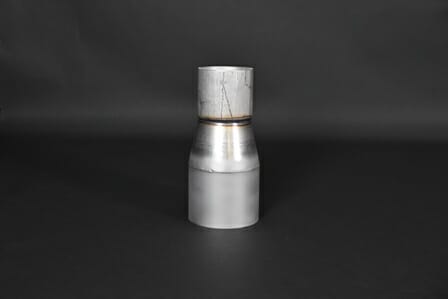

Hub Drain (6” X 4” SCH 40, 316L)

6″ x 4″, Sch 40, 316L, 12 3/4″ Long

Metal cylindrical object with a tapered top and visible welding seams, set against a dark background.

A modern, cylindrical vase with a smooth gray top and a textured marble base, set against a dark background.

Metallic cylindrical object with a tapered base and a smooth finish, set against a dark background.

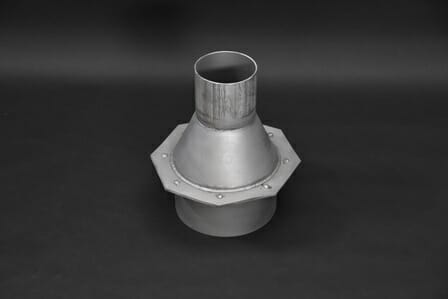

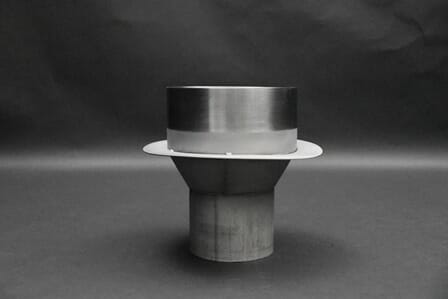

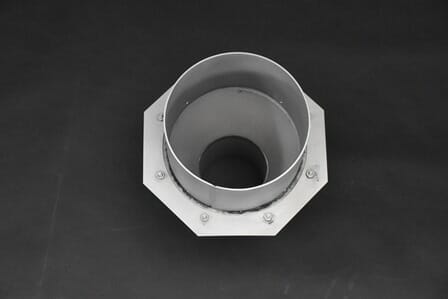

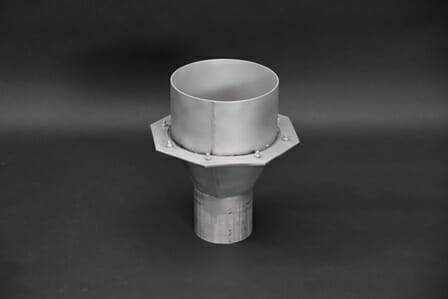

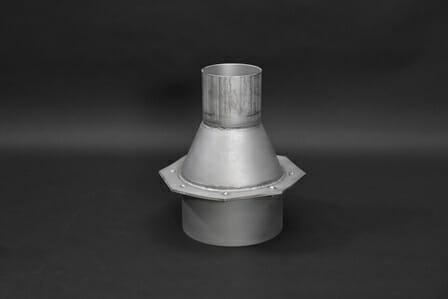

Hub Drain (8” X 4” SCH 10, 316L, Clamping Ring)

8″ x 4″ Sch 10, 316L, 12 3/4″ Long, Clamping Ring

Metal funnel with a wide top and tapered bottom, featuring a smooth, shiny surface against a dark background.

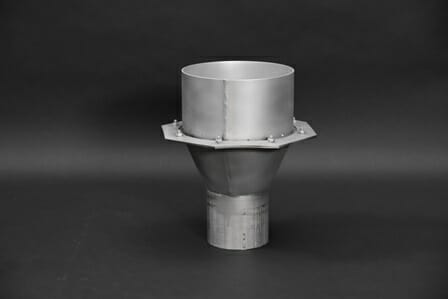

Metal funnel with a wide top and narrow base, featuring a hexagonal flange, set against a dark background.

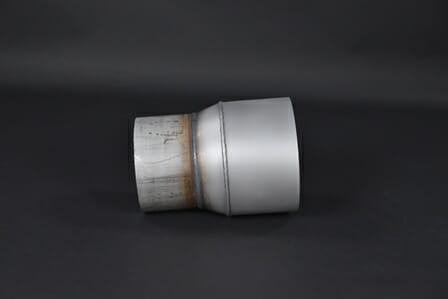

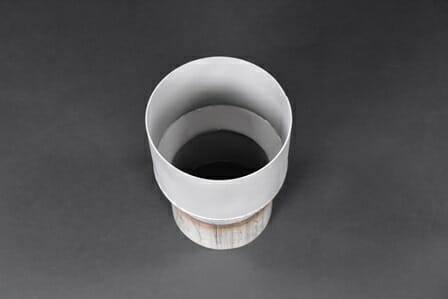

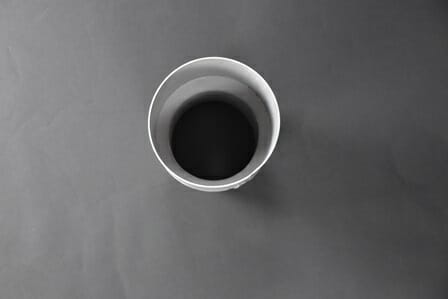

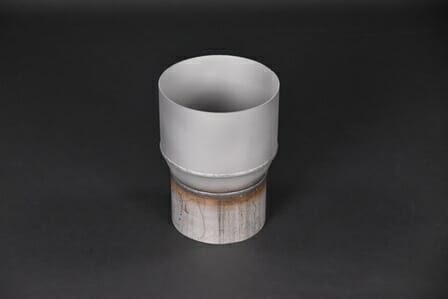

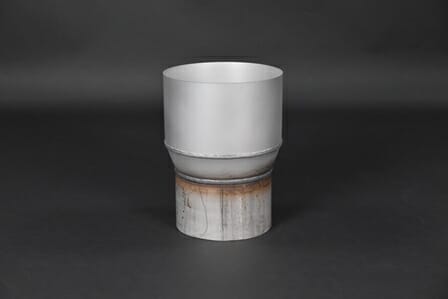

Hub Drain (8” X 6” SCH 10)

8″ x 6″ Sch 10, 304, 10 3/4″ Long

A cylindrical metal container with a smooth gray surface and a rusted base, set against a black background.

A white cup sits on a dark gray surface, revealing a deep black interior.

Metal exhaust pipe with a shiny silver finish and a rusted section, set against a dark background.

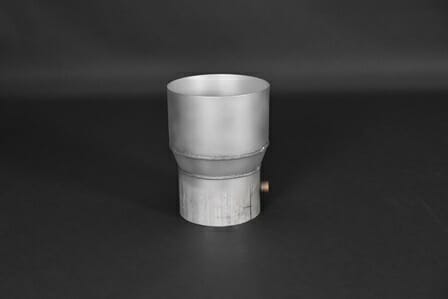

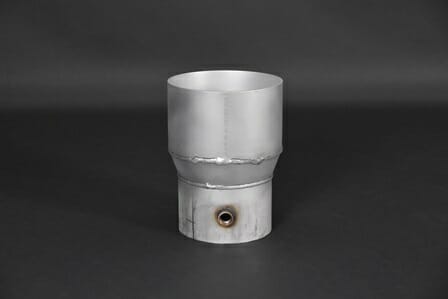

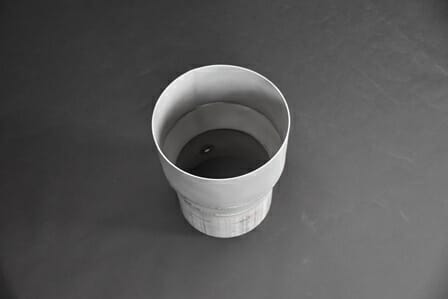

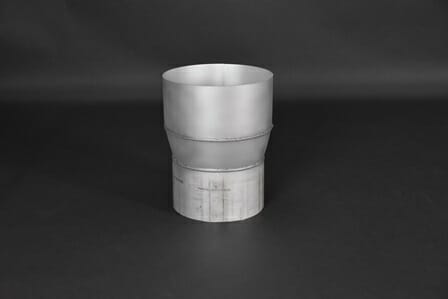

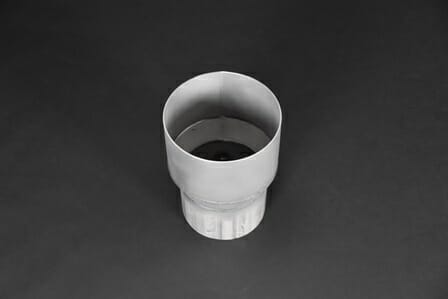

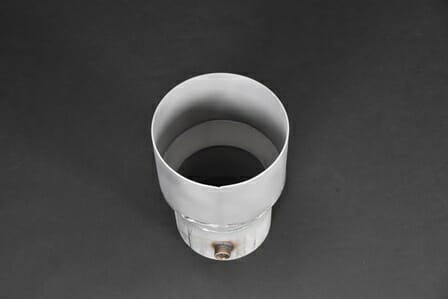

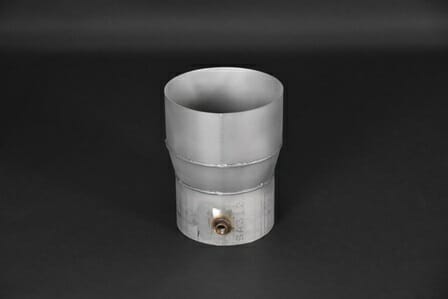

Hub Drain (8” X 6” SCH 10, Primer Fitting)

8″ x 6″ Sch 10, 304, 10 3/4″ Long, Primer Fitting

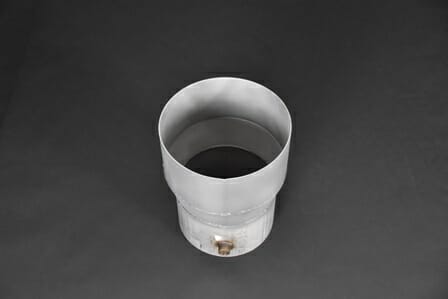

Metal cylindrical pipe fitting with a wider top and a narrow base, featuring a small threaded hole at the bottom.

Metal cylindrical object with a tapered base and a side opening, set against a dark background.

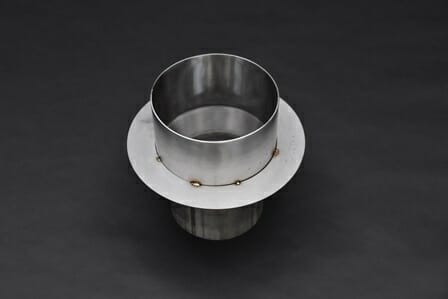

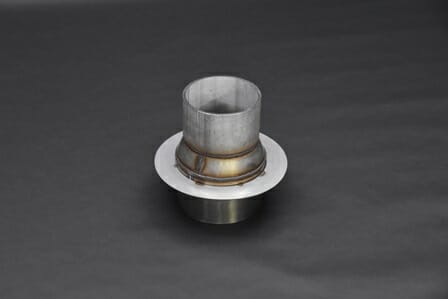

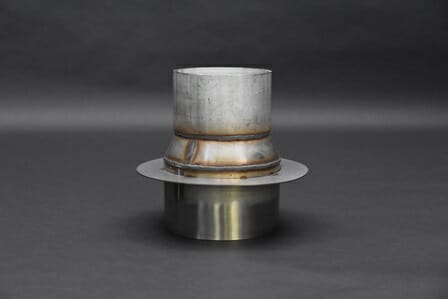

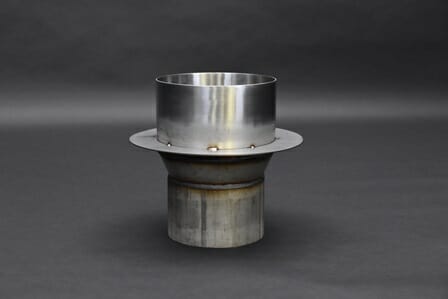

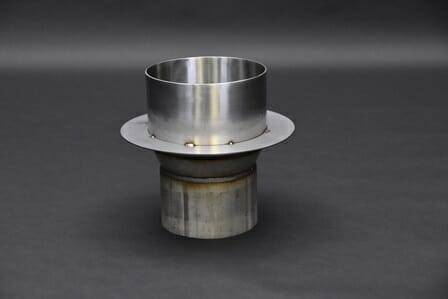

Hub Drain (8” X 6” SCH 40, Setting Ring, Polished)

8″ x 6″ Sch 40, 304, 10 3/4″ Long, Setting Ring, Polished

Metal exhaust pipe with a cylindrical top and flared base, featuring a polished surface and a weathered lower section.

Shiny stainless steel exhaust pipe with a flared top and a cylindrical base, set against a dark background.

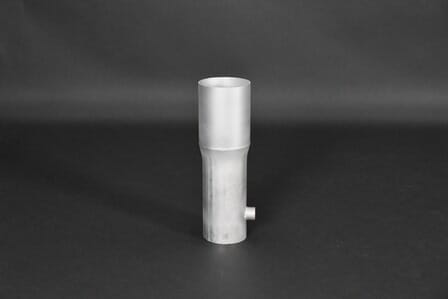

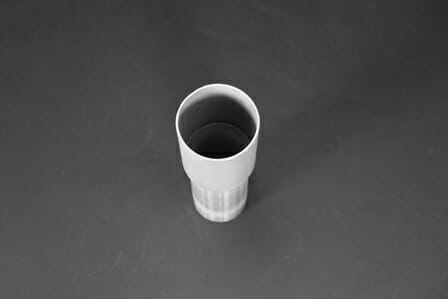

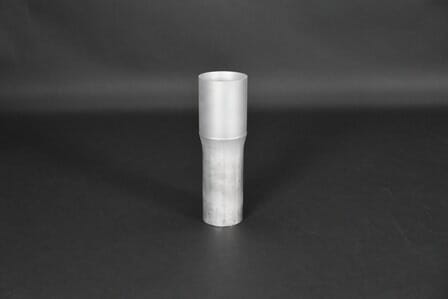

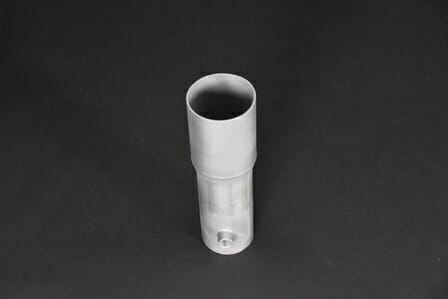

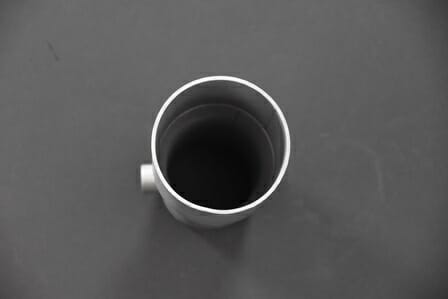

Hub Drain (4″ X 3″ SCH 40, Primer Fitting)

4″ x 3″ Sch 40, 304, 12 3/4″ Long, Primer Fitting

Metal cylindrical object with a wider top and a side outlet, set against a dark background.

Metal cylindrical tube with a wider top and a narrower base, set against a black background.

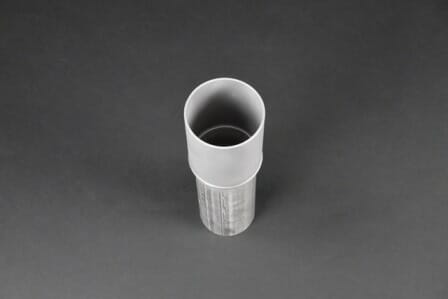

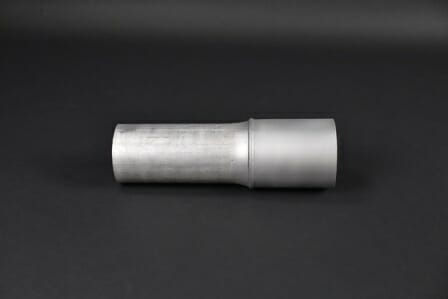

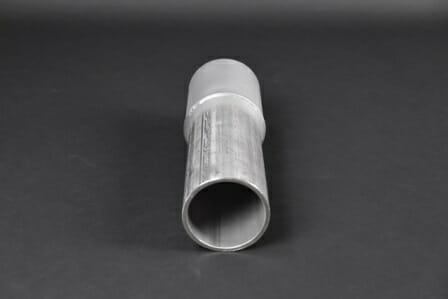

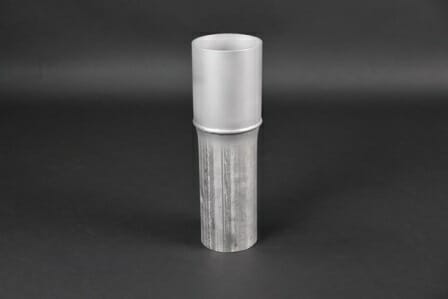

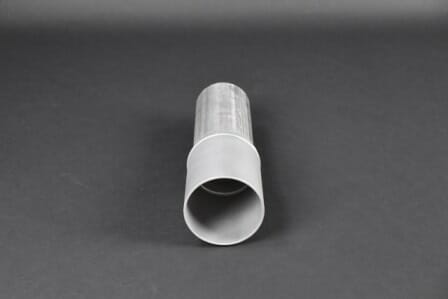

Hub Drain (4″ X 3″ SCH 40)

4″ x 3″ Sch 40, 304, 12 3/4″ Long

Metallic cylindrical object with a smooth upper section and a textured lower section, set against a dark background.

A cylindrical gray tube with a smooth top and textured bottom, set against a dark background.

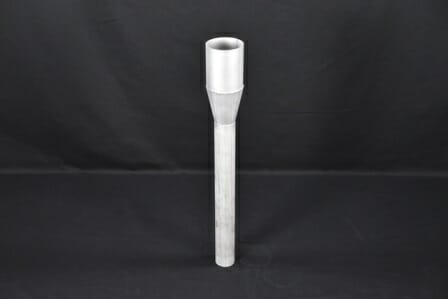

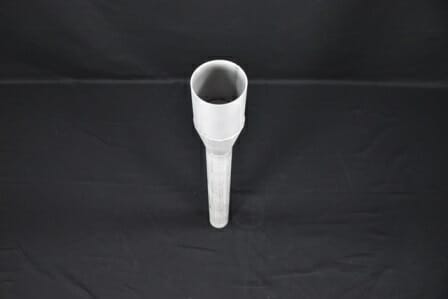

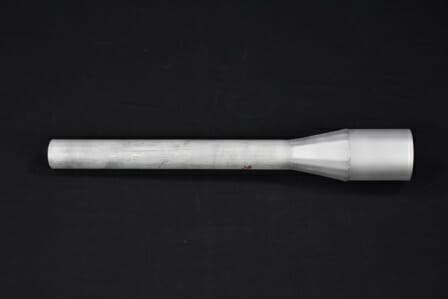

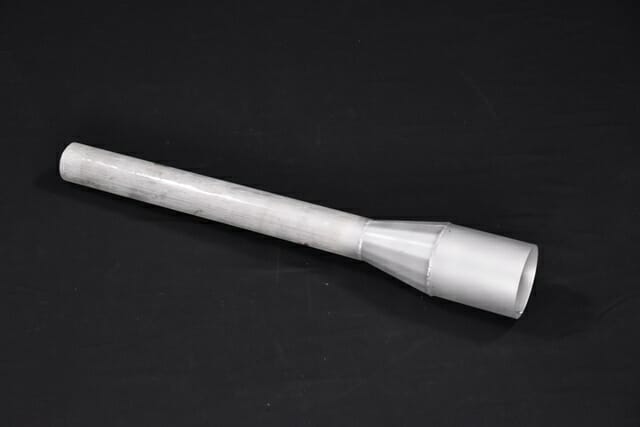

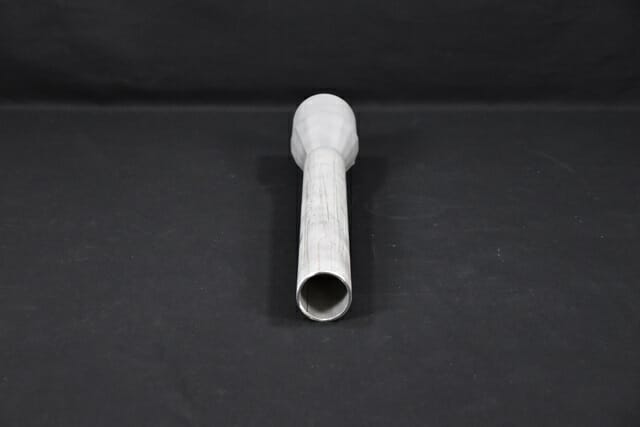

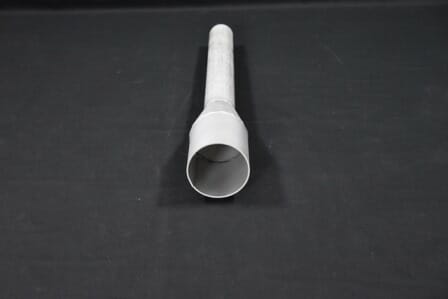

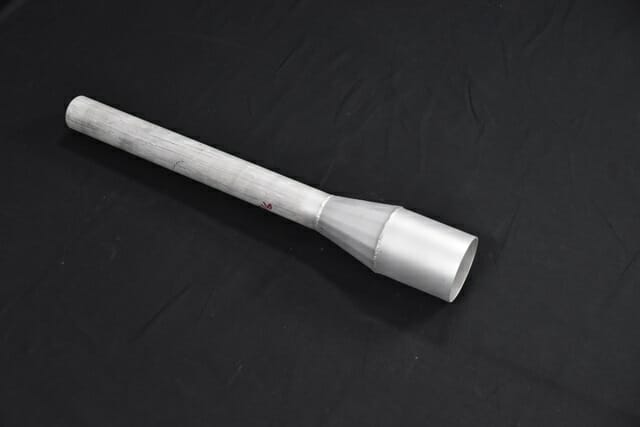

Hub Drain (4″ X 2″ SCH 40 316L)

4″ x 2″ Sch 40, 316L, 28″ Long

White cylindrical funnel with a wide opening on top, resting on a black surface.

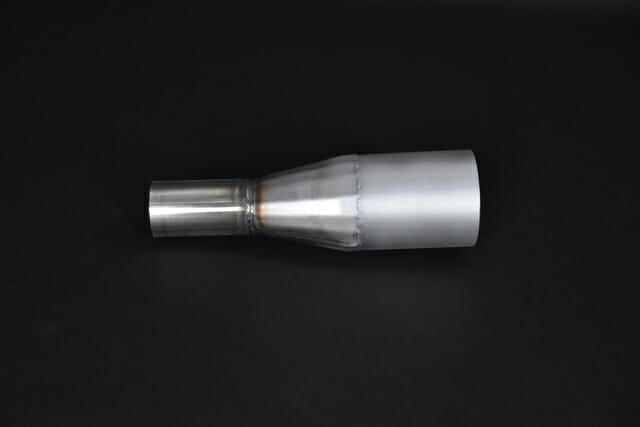

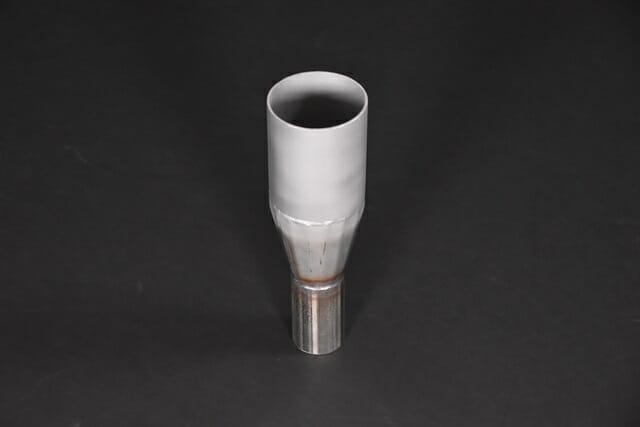

Hub Drain (4″ X 2″ SCH 40, 316L, 12 3/4″ Long)

4″ x 2″ Sch 40, 316L, 12 3/4″ Long

Metal exhaust pipe with a tapered design, featuring a shiny finish and a darker, textured base, set against a black background.

Metal exhaust tip with a tapered design, featuring a shiny silver finish and a welded base, set against a dark background.

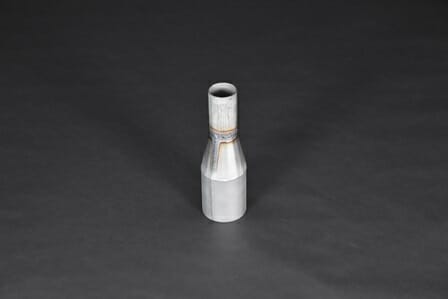

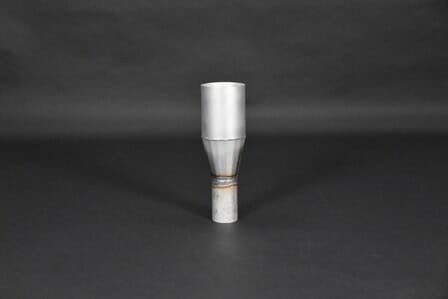

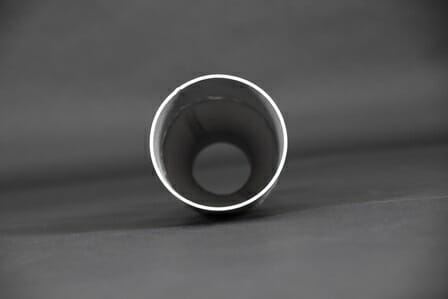

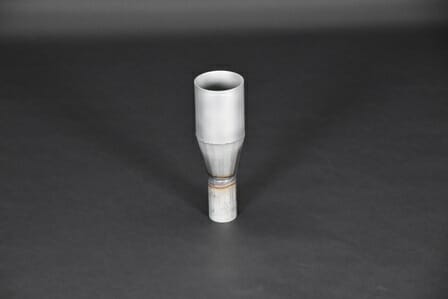

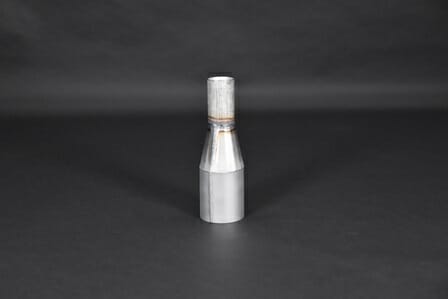

Hub Drain (4″ X 2″ SCH 10)

4″ x 2″ Sch 10, 316L, 12 3/4″ Long

Metal exhaust tip with a tapered design, featuring a shiny silver finish and a rusted base, set against a dark background.

Metal funnel-shaped object with a wider top and narrower base, resting on a dark surface.

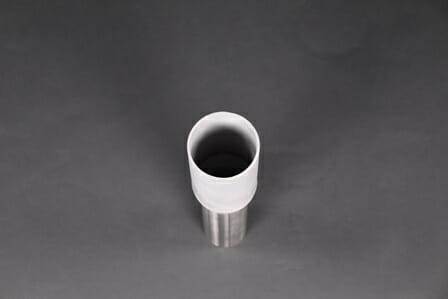

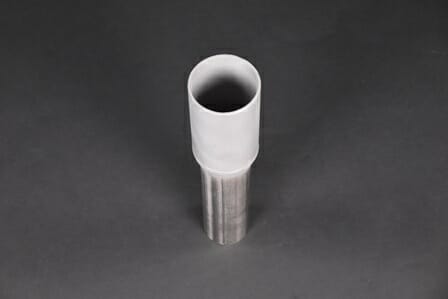

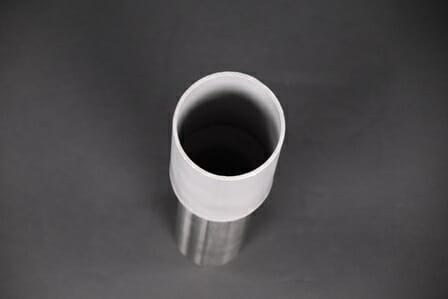

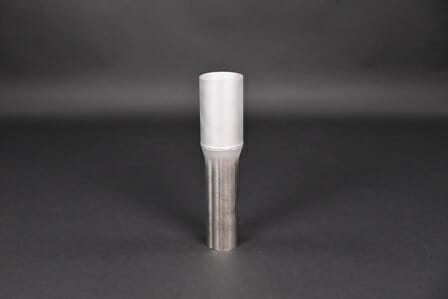

Hub Drain (3″ X 2″ SCH 40)

3″ x 2″ Sch 40, 304, 12 3/4″ Long

A cylindrical pipe with a smooth, white top and a metallic lower section, set against a dark background.

Metallic cylindrical object with a smooth top and ribbed base, set against a dark background.

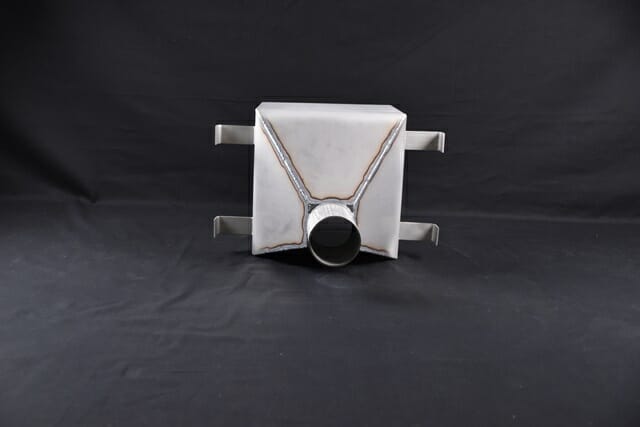

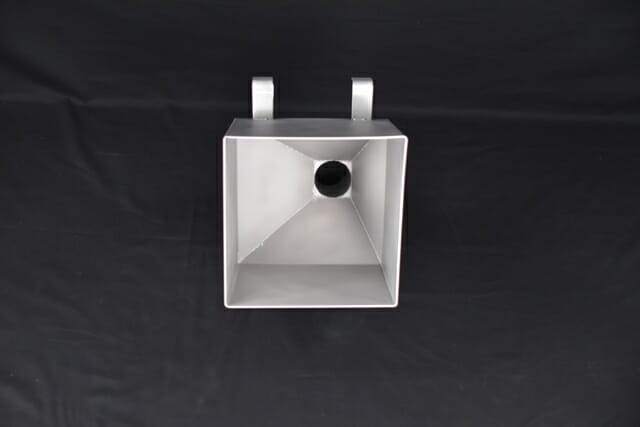

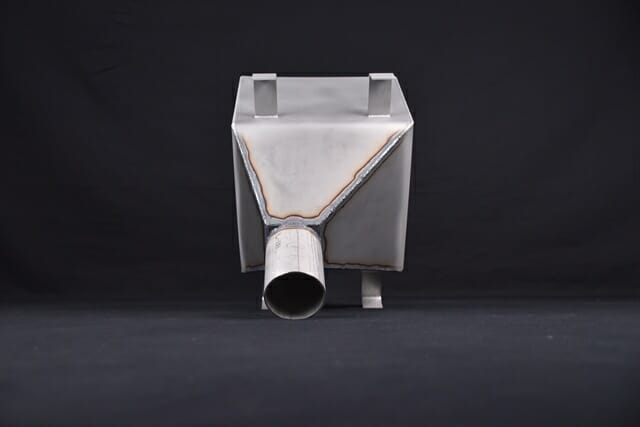

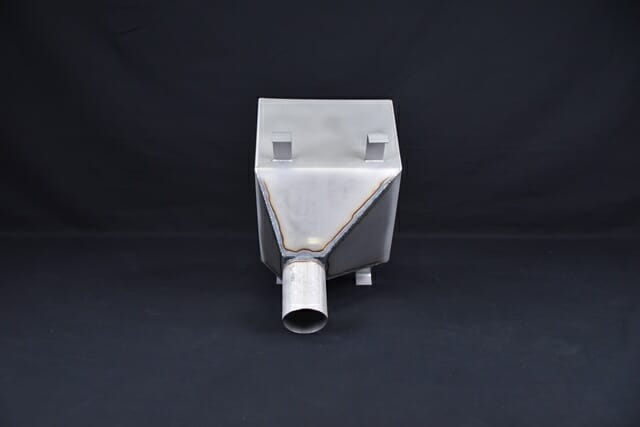

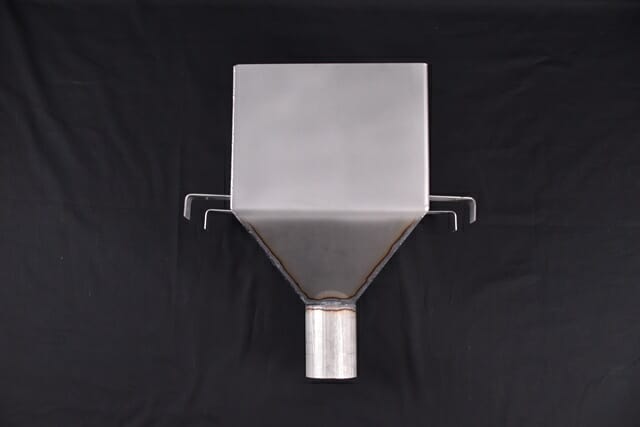

Hub Drain (12″ SQ X 3″ SCH 10)

A customer came to us with a specific design for a hub drain. Its placement was too close to the wall, and they needed the hub drain to be square with an offset outlet. Dimensions – 12” SQ x 3” SCH 10 Outlet x 19 ¾” long, 316L SS.
