Kusel’s Floor Troughs deliver reliable performance and are crafted from durable stainless steel to meet demanding industrial needs. With customizable options and expert guidance, we specialize in creating tailored solutions for unique customer requirements. Explore our gallery to see how we bring custom products to life.

Kusel’s Floor Troughs are meticulously engineered to provide exceptional performance in environments requiring efficient drainage solutions. Constructed from robust 12-gauge, 304 or 316L stainless steel, these troughs ensure longevity and reliability in demanding industrial settings.

Key Features:

Versatile Outlet Sizes: Available in outlet sizes ranging from 2” to 10” in Schedule 10 or 40, accommodating various flow requirements.
Customizable Dimensions: Lengths from 5” to 57”, widths from 5” to 30”, and depths from 4” to 38” allow for precise integration into existing floor plans.
Grate Options: Choose from formed-channel, open (bar), solid plate, slotted plate, or opt for no grate, depending on specific application needs.
Enhanced Installation: Equipped with leveling tabs to facilitate accurate and efficient installation.

Order Your Floor Trough →

Floor Trough Custom Solution Gallery

Floor Trough

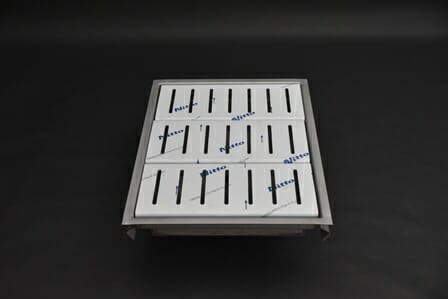

The Kusel Floor Trough provides high-quality performance and reliability in large areas where significant flow occurs without a basket. They are constructed of 12-gauge, 304 or 316L stainless-steel in standard industrial settings, featuring bead-blasted welds. Several grate options available. Optional stainless-steel outlet strainers are also available.

Square metal floor drain with a slotted cover, set against a dark background.

Square metal drain with a circular opening, accompanied by a slotted cover, set against a dark background.

Square stainless steel drain with a removable slotted cover, placed on a dark surface.

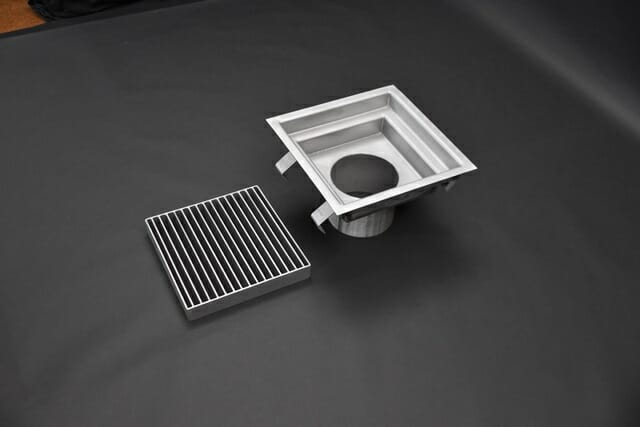

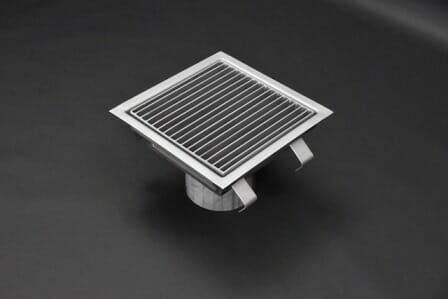

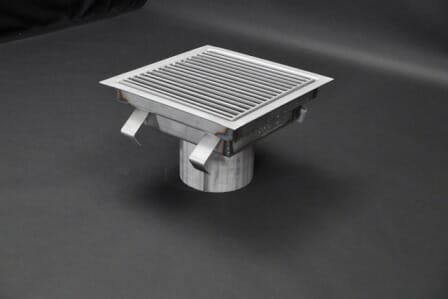

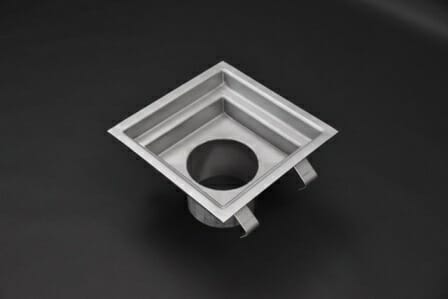

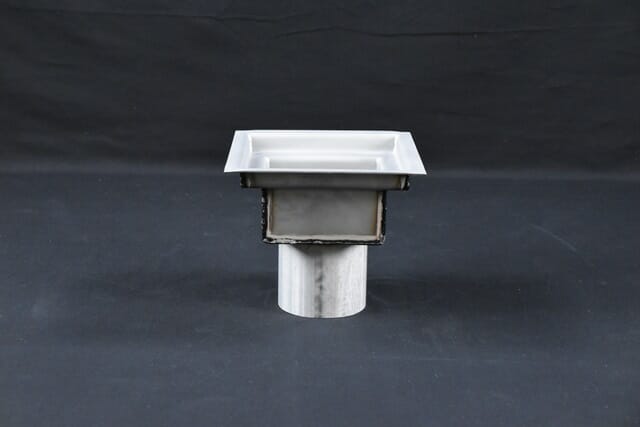

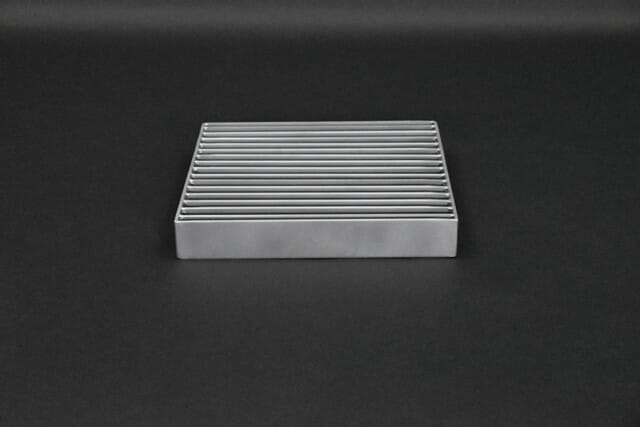

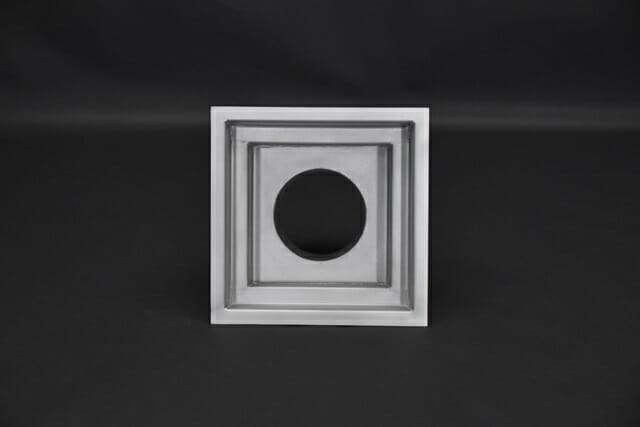

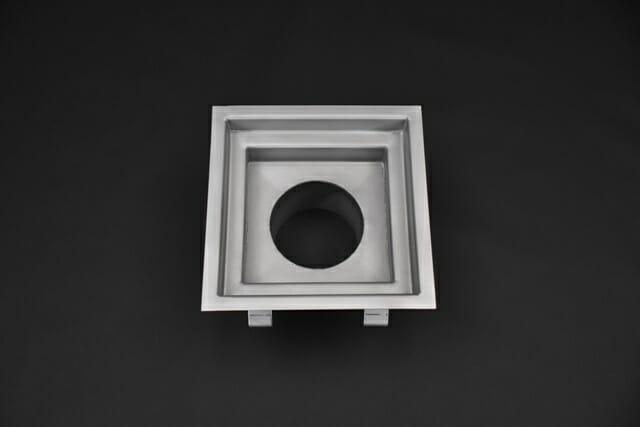

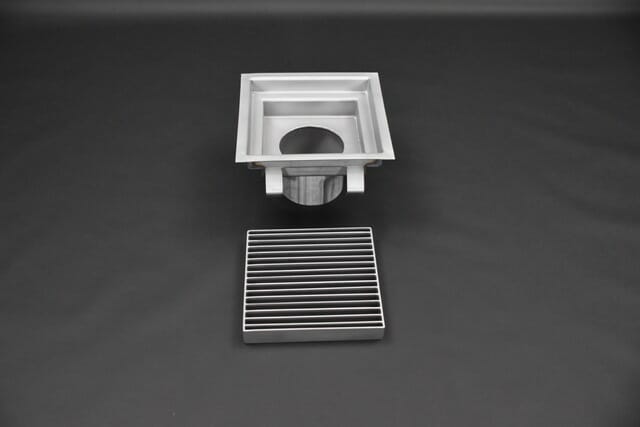

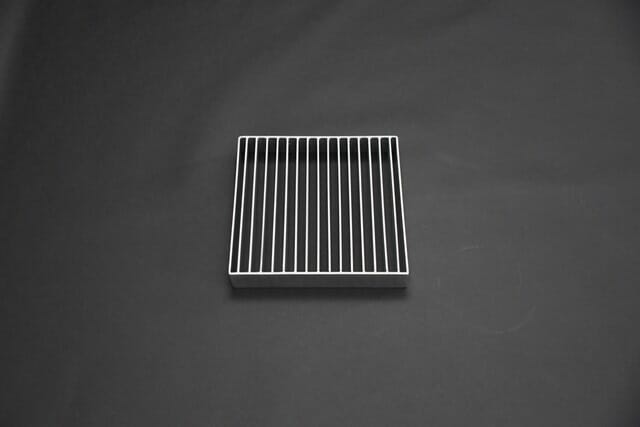

12″ x 12″ x 4″, 6″ Outlet, 3/4″, Open Grate

Floor Trough, 12″ x 12″ x 4″, 6″ Outlet, 3/4″ Custom Open Grate

Stainless steel vent cover with a grid pattern, mounted on a cylindrical base, set against a dark background.

Square metal grill with slatted top, mounted on a cylindrical base, set against a dark background.

Stainless steel square drain with a central circular opening, set against a dark background.

18″ x 24″ x 4″, 4″ Sch 40, Channel Grate

Floor Trough, Classic, 18″ x 24″ x 4″, 4″ Sch 40 Outlet, Channel Grate

Square metal drain cover with slotted design, mounted on a cylindrical base, against a dark background.

Stainless steel sink with a rectangular basin and a central drain, set against a dark background.

Stainless steel sink with a rectangular shape, featuring a central drain hole and side flanges for installation.

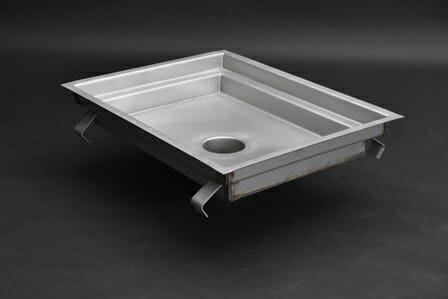

24″ x 30″ x 4″, 4″ Sch 40, Open Grate

Floor Trough, Classic, 24″ x 30″ x 4″, 4″ Sch 40 Outlet, Open Grate

Stainless steel grill grate with parallel slats, resting on a dark surface, showcasing its sleek design.

Square stainless steel grill with parallel slats and a central circular hole, set against a dark background.

Square metal air filter with a white mesh surface, mounted on a cylindrical base, against a black background.

12″ x 12″ x 4″, 4″ Outlet, Half Open Grate

Floor Trough, Custom, 12″ x 12″ x 4″, 4″ Outlet, Half Open Grate

Stainless steel food pan with a cylindrical base and a separate tray with dividers, set against a dark background.

Stainless steel sink with a divided compartment and a circular drain hole, set against a black background.

Stainless steel sink drain with multiple compartments and a central hole, set against a dark background.

18″ x 30″ x 4″, 4″ Outlet, Channel Grate 3/4″ Holes

Floor Trough, Custom, 18″ x 30″ x 4″, 4″ Outlet, Channel Grate 3/4″ Holes

Stainless steel perforated tray with raised edges, set against a dark background.

Stainless steel kitchen scale with a flat platform and three perforated trays, set against a dark background.

Stainless steel sink with three matching perforated drain covers, set against a black background.

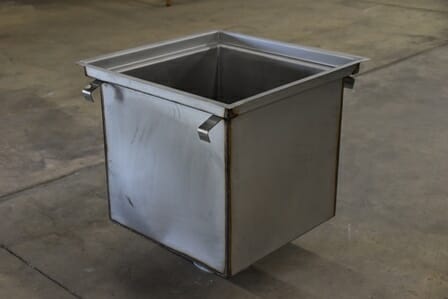

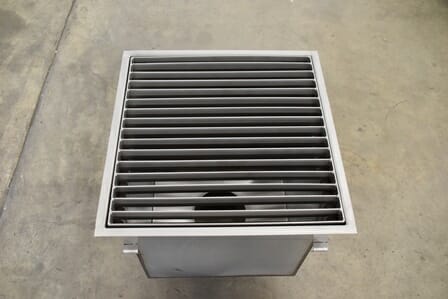

24″ x 24″ x 22″, 8″ Outlet, Open Grate

Floor Trough, Custom, 24″ x 24″ x 22″, 8″ Outlet, Open Grate

Stainless steel grill with a slatted top and handles, positioned on a concrete floor.

Metal storage container with a square top, mounted on a cylindrical base, set in a warehouse environment.

Square stainless steel container with handles, placed on a concrete floor in a workshop setting.

24″ x 24″ x 12″, 3″ Outlet, Open Grate

Floor Trough, Custom, 24″ x 24″ x 12″, 3″ Outlet, Open Grate

Square stainless steel drain with slatted grate, resting on a concrete surface.

Stainless steel floor drain with a slotted grate, resting on a concrete surface.

Stainless steel sink with a square basin and side handles, placed on a concrete floor in an industrial setting.

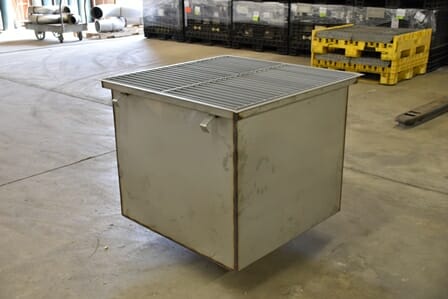

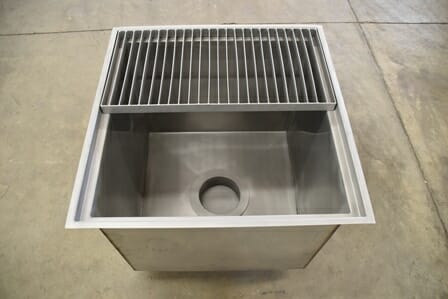

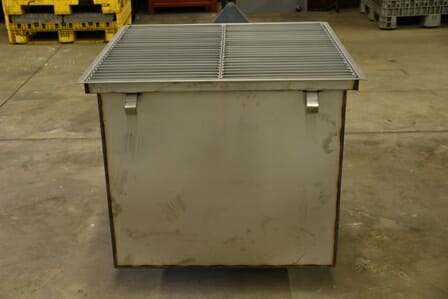

36″ x 36″ x 30″, 10″ Outlet, Open Grate

Floor Trough, Custom, 36″ x 36″ x 30″, 10″ Outlet, Open Grate

Stainless steel sink with a slotted grate on one side and a deep basin with a drain on the other.

Stainless steel sink with a slotted grate on top and a circular drain hole, set on a concrete floor.

Metal storage box with a slatted top, placed on a concrete floor in an industrial setting.

6″ x 12″, 4″ Outlet, Open Bar Grate

Floor Trough, Custom 6″ x 12″, 4″ Outlet, Open Bar Grate

Metal drainage system component with a rectangular base and a slotted cover, set against a black background.

Metal air vent with five horizontal slats, mounted on a circular base, against a black background.

Metal fabrication piece with a rectangular top and cylindrical base, showcasing visible welding seams against a black background.

6” x 12”, 4” Outlet

This custom floor trough was created to fit precisely into the bottom of a preformed concrete trench. Because the trench was already existing, the customer needed a solution that would not require any changes to the existing flooring.

Dimensions – 6” x 12” 4” Outlet.

Metal drainage funnel with a rectangular base and removable slotted tray, set against a black background.

Metal component with a cylindrical opening, featuring welded seams and a rectangular base, set against a black background.

Metallic rectangular block with a central circular hole, set against a black background.

9 ¼” SQ x 4” 4” Outlet, Solid Grate

The customer had an existing trench with large sumps and baskets. The baskets were too big and heavy to lift. The solution we developed was a floor trough designed to fit the exact dimensions of the existing sump while including a strainer to prevent sediment and materials from entering the piping system.

Dimensions – 9 ¼” SQ x 4” 4” Outlet – Solid Grate.
